Nanxin Technology (stock code 688484) was acquired in July 2023Shanghai Munich Electronics ExhibitionA groundbreaking fast charging solution has been grandly released on the platformPOWERQUARK^&Reg;”Series products.

This series of products has industry-leading ultra-high integration, ultra-high efficiency, and ultimate safety performance; Supports multiple formats of communication protocols;

And it can achieve ultra-high overall power density,Compared to the previous generation solution, it can be reduced by 30%,It will inevitably cause a huge shock in the fast charging industry, trigger a technological revolution in fast charging, and lead a new generation of fast charging.

Solution Analysis - Nanxin Technology POWERQUARK^&Reg;Series products

South Core Technology POWERQUARK^&Reg;Series products,Integrate 5 major technologies to achieve 5 functions, exceeding 95% efficiencyBringing unprecedented ultimate experience to designers and users:

-Self developed fully integrated packaging technology

-Secondary control soft switching technology

-Secondary control active synchronous rectification technology

-High speed isolated digital communication technology

-Multi standard fast charging protocol compatibility technology

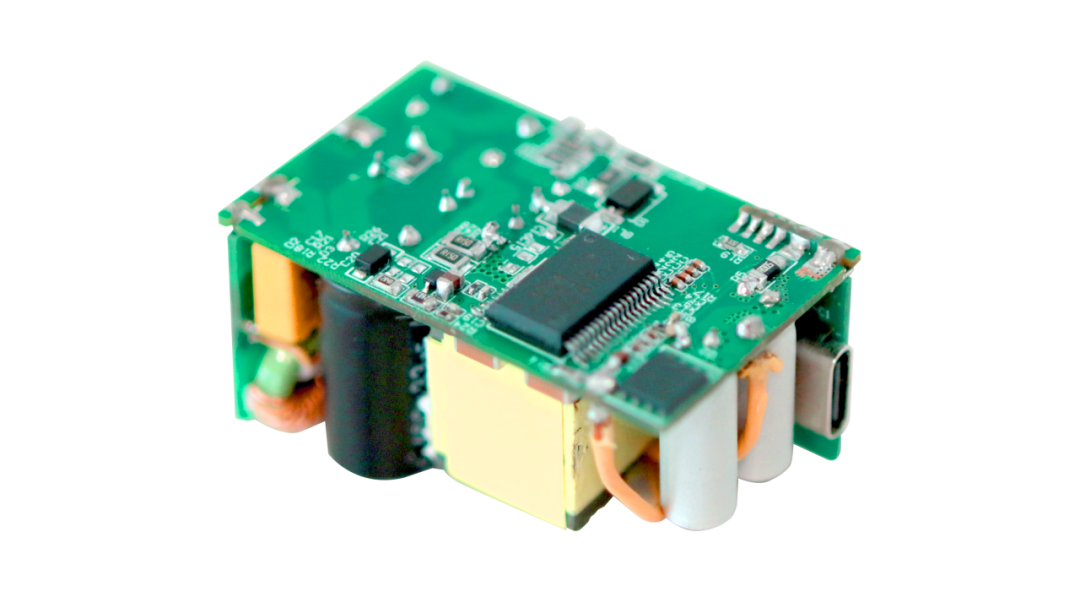

Nanxin POWERQUARK^&Reg;series65W 1Cprogramme

L * W * H:46mm * 27.5mm * 23mm

Power density:2.23W/cm ^ 3/PCBA

Characteristics

Self developed fully integrated packaging technology

-This product set“High voltage GaN isolation communication secondary SR controller protocol for primary side controller”The ultimate system solution combines five functions and provides users with an excellent user experience.

-Multiple fully integrated solutionsCan save 20 peripheral devicesMinimalist peripheral devices further reduce the difficulty of design and debugging, reduce the board area, and save costs.

-High IntegrationSelf developed packagingEnsure reliable safety performance and sufficient heat dissipation.

Secondary control soft switching technology

-Under high pressureOver 95% efficiencyTo provide a foundation for higher power and smaller volume.

-Not increasing costsOriginal edge soft switching technologyBring the application of new technologies to new directions.

-Secondary SR peak stress reduced by more than 10vEnsure the reliability and long-term service life of the product.

-Soft switching technology greatly reduces switching losses, empowers high-frequency applications, and has a larger overall size compared to previous generation solutionsCan reduce by 30%.

Secondary control active synchronous rectification technology

-Under low pressureOver 93% efficiency.

-Secondary control ensures that there is no common phenomenon between the primary and secondary edges, and through the control of technical details, improves product reliability.

High speed isolated digital communication technology

-Safe and reliable high-speed isolated digital communicationAlternative optocouplerImprove product performance, reduce peripheral components, and enhance product reliability.

Multi standard fast charging protocol compatibility technology

-SupportPD2.0/PD3.0, UFCSWaiting for various fast charging protocols.

-Mature and stable protocol solutions for quick product implementation

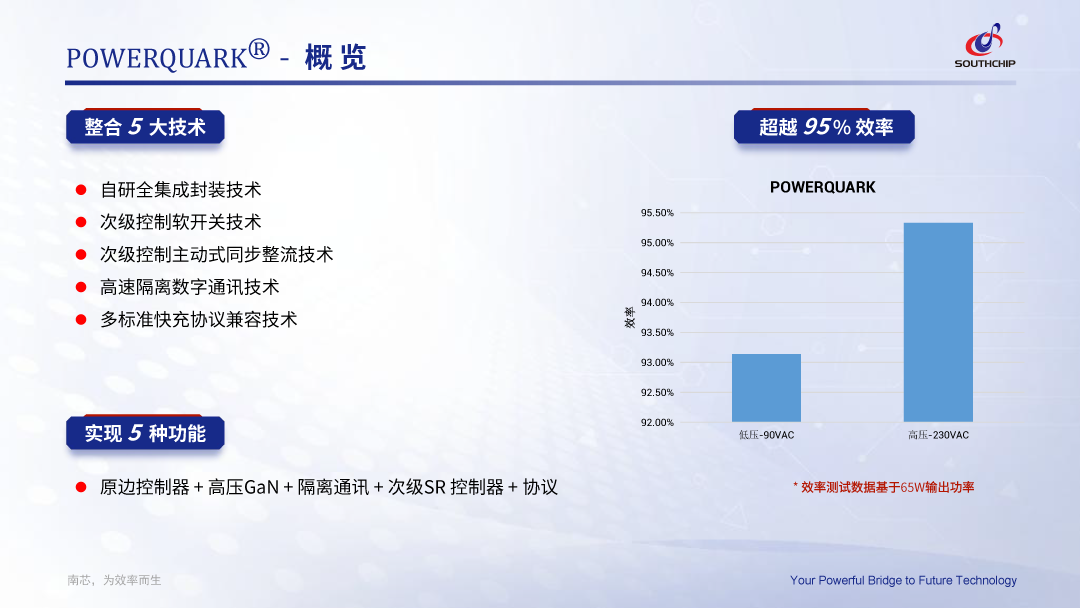

Nanxin POWERQUARK^&Reg;Series Overview

Conclusion

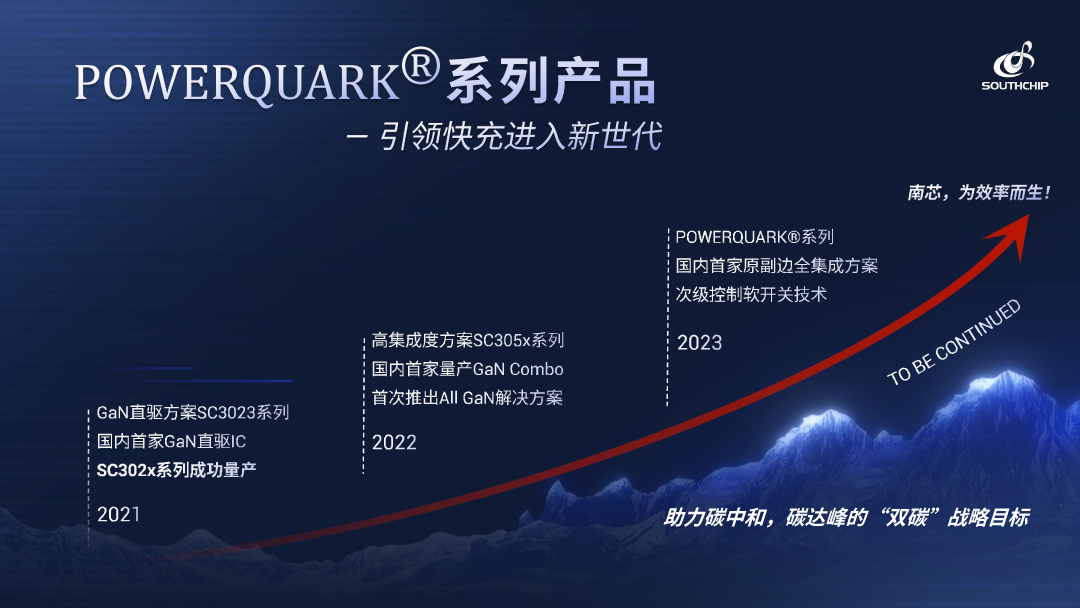

Since Nanxin Technology launched its first domestically produced GaN direct drive solution with an efficiency of over 93% in 2021, it has once again launched its first domestically integrated GaN sealing product with an efficiency of over 94% in 2022, laying the foundation for Nanxin Technology's high-end leading position in the AC/DC market.

This time, Nanxin Technology has launched a product with an efficiency of over 95%POWERQUARK^&Reg;Series fast charging productsFurthermore, we deeply practice the product concept of "Nanxin, Born for Efficiency" and will once again lead the new generation of fast charging solutions.

interpretative statement

*Part of the scheme definitions and data in the text are for reference only, and details are subject to the official release of Nanxin

*If there is an error in the data, please contact customer service to delete it
